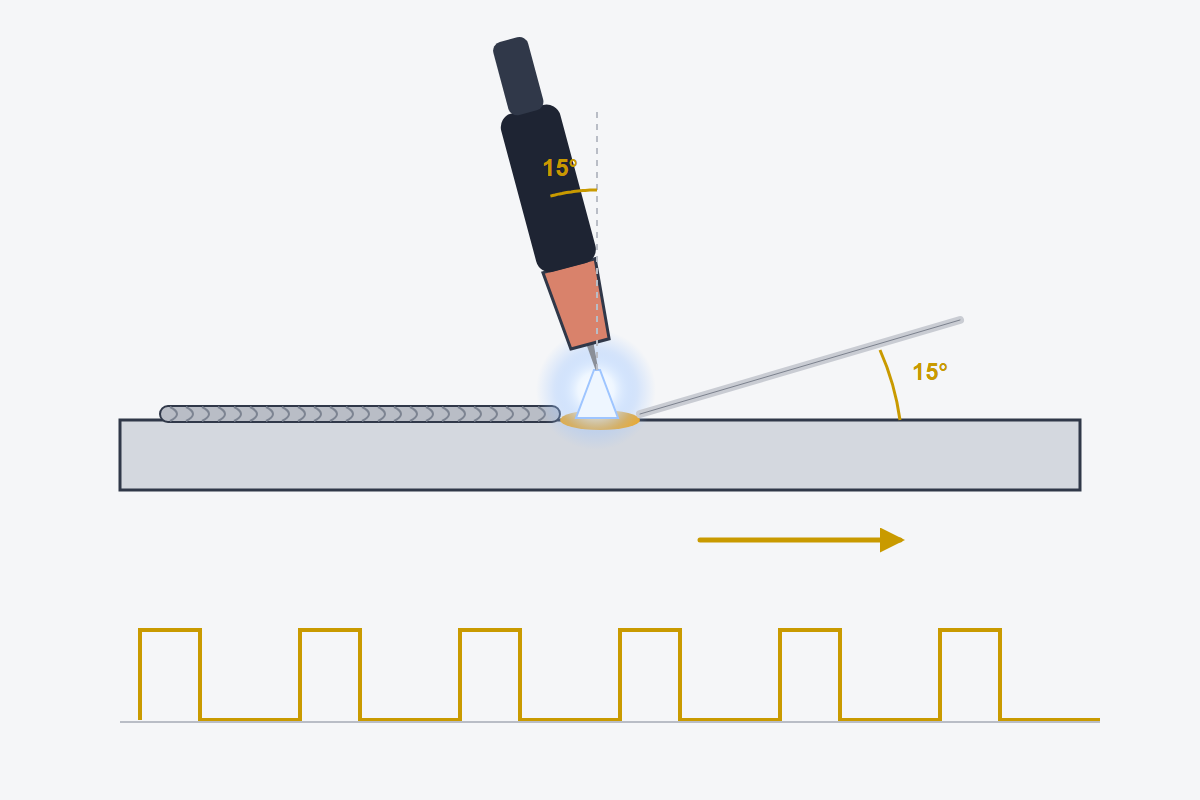

Starting values for welding in the flat position with pure argon. Stainless takes somewhat less current than carbon steel, and vertical or overhead a little less again. The cup is given by its number, the bore in sixteenths of an inch. These values are a place to start: fine-tune them on scrap and, when there is a procedure, the WPS rules.
| Material | Thickness | Current (A) | Current type | Tungsten, mm (in) | Rod, mm (in) | Cup no. | Argon, L/min (CFH) |
|---|---|---|---|---|---|---|---|
| Steel or stainless | 1 mm (20 ga) | 30 to 60 | DCEN | 1.0 to 1.6 (0.040 to 1/16) | 1.0 to 1.6 (0.040 to 1/16) | 4 to 5 | 5 to 7 (11 to 15) |
| Steel or stainless | 1.5 to 2 mm (16 to 14 ga) | 60 to 100 | DCEN | 1.6 (1/16) | 1.6 (1/16) | 5 to 6 | 6 to 8 (13 to 17) |
| Steel or stainless | 3 mm (1/8 in) | 90 to 140 | DCEN | 2.4 (3/32) | 2.4 (3/32) | 6 to 7 | 7 to 9 (15 to 19) |
| Steel or stainless | 5 mm (3/16 in) | 140 to 200 | DCEN | 2.4 to 3.2 (3/32 to 1/8) | 2.4 to 3.2 (3/32 to 1/8) | 7 to 8 | 8 to 10 (17 to 21) |
| Steel or stainless | 6 mm (1/4 in) or more, multipass | 180 to 250 | DCEN | 3.2 (1/8) | 3.2 (1/8) | 8 | 9 to 12 (19 to 25) |
| Aluminum | 1.5 to 2 mm (1/16 to 5/64 in) | 70 to 110 | AC | 1.6 to 2.4 (1/16 to 3/32) | 1.6 to 2.4 (1/16 to 3/32) | 6 to 7 | 7 to 9 (15 to 19) |
| Aluminum | 3 mm (1/8 in) | 110 to 160 | AC | 2.4 (3/32) | 2.4 to 3.2 (3/32 to 1/8) | 7 to 8 | 8 to 10 (17 to 21) |
| Aluminum | 5 to 6 mm (3/16 to 1/4 in) | 170 to 250 | AC | 3.2 (1/8) | 3.2 (1/8) | 8 | 10 to 12 (21 to 25) |
Lessons 5, 6 and 8 explain each column. Like everything else in our Steel Knowledge Hub, the chart is free to consult on the Indumor site.
